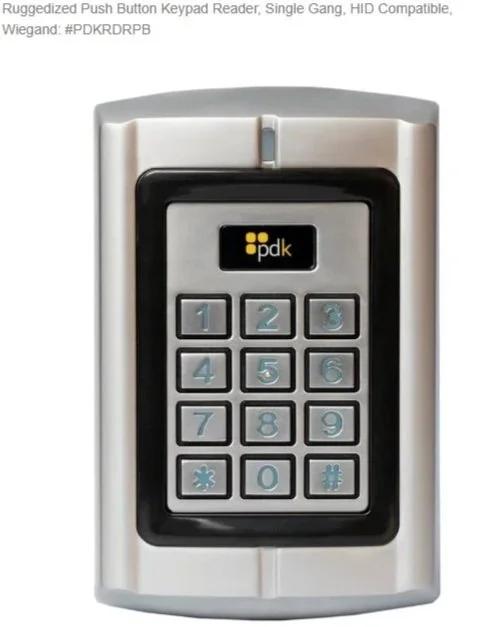

RUGGEDIZED SGL GNG READER HID COMPATIBLE
RUGGEDIZED SGL GNG READER HID COMPATIBLE
ProdataKey’s reader combines multiple configuration options with an attractive,inconspicuous design and economical price. Its secure potted electronics are ideal for bothindoor and outdoor applications.
The PP08MRDR and PP08SGR are Wiegand Output Proximity Readers. 125KHz EM and 125KHz HID formats are compatible with these readers. These readers have the ability to read a HID format between Wiegand ranges of 26 bits - 37 bits. The default EM bit range is set to Wiegand 26 bits
SPECIFICATIONS
- Operating Voltage: 9 ~ 18V D C
- Frequency: 125K Hz
- Card Type: EM card and HID card format
- Reading Distance: 1-3/8 to 3-1/8"
- Output: HID Wiegand 26 - 37, EM Wiegand 26
- Environmental:
- Indoor/outdoor, waterproof
- Temperature: -40° F ~ 140° F
- Humidity: 10% - 98% relative humidity non condensing
- Standby Current: ≤ 25 mA
- Index of Protection: IP 66
- Enclosure (L x W x H):
- 4-3/4" x 1-7/8" x 7/8"
- 4-3/4" x 3" x 7/8"
FEATURES
» Mounting: The reader will need three holes, two for mounting and one for the cable.
» Diagnostics: On controller power-up, an internal self-test routine checks and verifies the setup configuration, determines the boot of firmware along with connection through LED indicator, and initializes controller operation. An additional connection test in the software allows for the controller to be detected and determine functionality.
» Tamper: The readers have a built-in light sensor to signal when the keypad is being tampered.
» Easily Interfaced: Connection to the door controller using the included five wire pigtail.
» Security: Each reader includes a security screw and sound alarm.
» Indicators: GREEN LED: Accepted Entry - RED LED: Denied Entry
