Edson Dual Diaphragm Pump
Edson Dual Diaphragm Pump

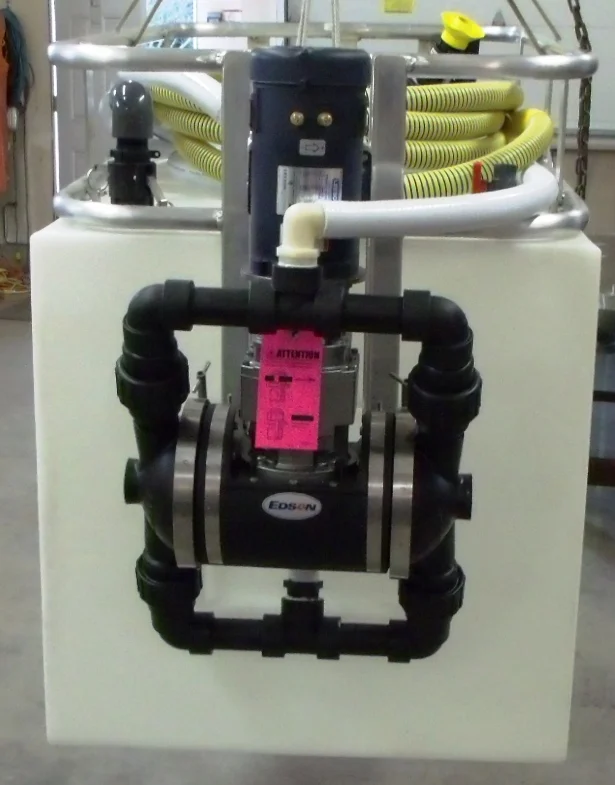

Edson’s 2500 Series Pumps are outstanding electric powered, double diaphragm, plastic, transfer pumps.
The Edson 2500 series pumps combine pumping features that include dry start suction lift, the ability to pump liquids with suspended solids, a low emulsion pumping action and the ability to run dry indefinitely with the chemical resistants of polypropylene.
The 2500 series pumps are available as: The Model 2500 - a variable speed, inverter controlled version that includes a VFD mounted to a 3/4 hp integral gear motor.
The Models 25060, 25050, 25040, 25030 & 25020 - fixed speed versions each of which are built with 1 of 5 different ratio gear reducers and to which you can mount any 3/4 Hp (.55kw), 56C frame motor to create a pump that meets the performance and electrical specifications needed for your application. The motors are ordered separately with the fixed speed versions. Flexibility in a simple to understand and maintain package, the 2500s can do just about any pumping task you need done at suction lifts up to 25 ft, discharge heads up to 25 ft and volumes up to 25 gpm.
25’ suction lift, 25’ discharge head, up to 25gpm
